Solo 4 G3 PLUS IT Data Acquisition
- Product Code: F.GR-0071-200
Please Contact Us for any question or support.
ICS warrants its Products free from defects in material and workmanship for a period of twelve (12) months from the date of purchase.
The warranty does not apply to failures of the product due to improper use, installation, handling or breakage of the Product. The warranty does not cover instances resulting from improve care, accidents, alterations, modifications, tampering in any way, or negligence.
The warranty is void if the product has been repaired or serviced by an unauthorized person/company.
The warranty is not transferable and void if/when the product is sold to a third party.
The warranty does not apply to damages caused during shipping or caused by force or an Act of God.
The warranty does not cover accessories included with the product, such as cables, etc..., or any other items that may be included and shipped with the main unit.
Four Ports Disk Duplicator
|In The Box:||
Solo 4 G3 PLUS IT unit.

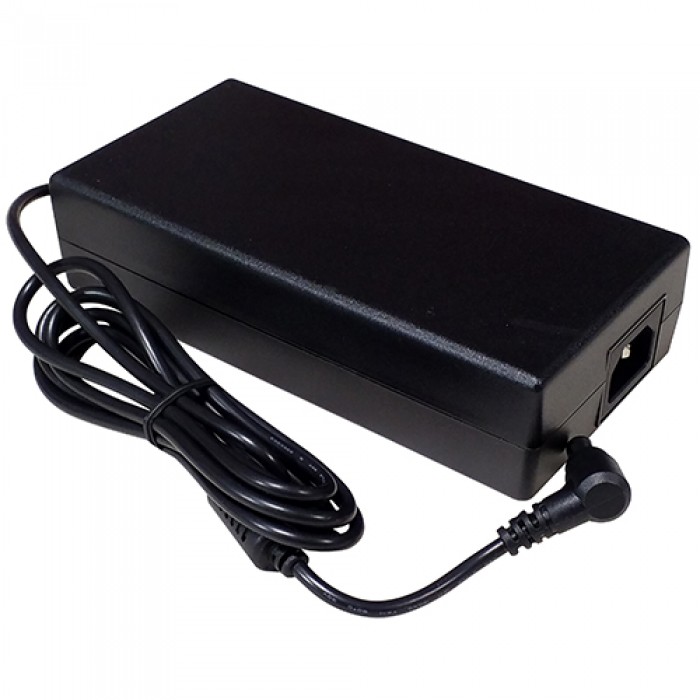

One Power Supply.

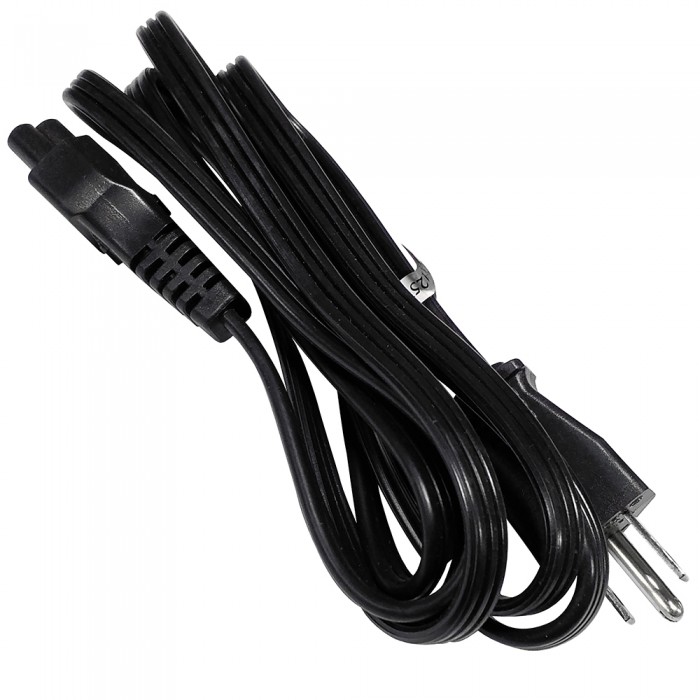

One Power Cord.
One User Manual.
One Stylus Pen.
One Restore Media.One IDE to 2.5" IDE HDD Adapter.
One SAS to IDE HDD Adapter.Four SAS Data Power Cable.
Solo-4 G3 PLUS IT

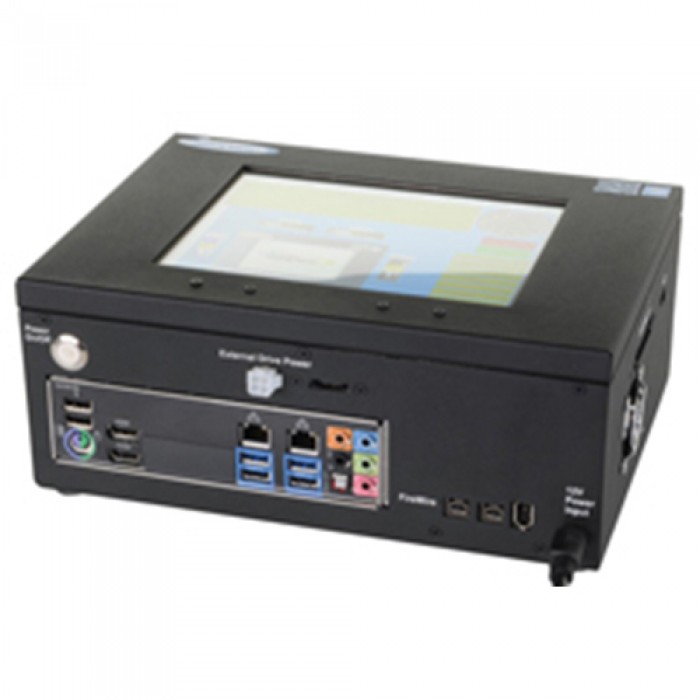

8" Color Touch Screen
Portable, Hand Held.
12" X 21"X 6"
|Unit Net Weight:||
10.6" W x 3.8" H x 7.7"D ( 270 x 98 x 194 mm)
|Manufacturer Lead Time:|
One Year Parts and Labor from Date of Purchase.
Price may change without notice.Lead Time May Very.

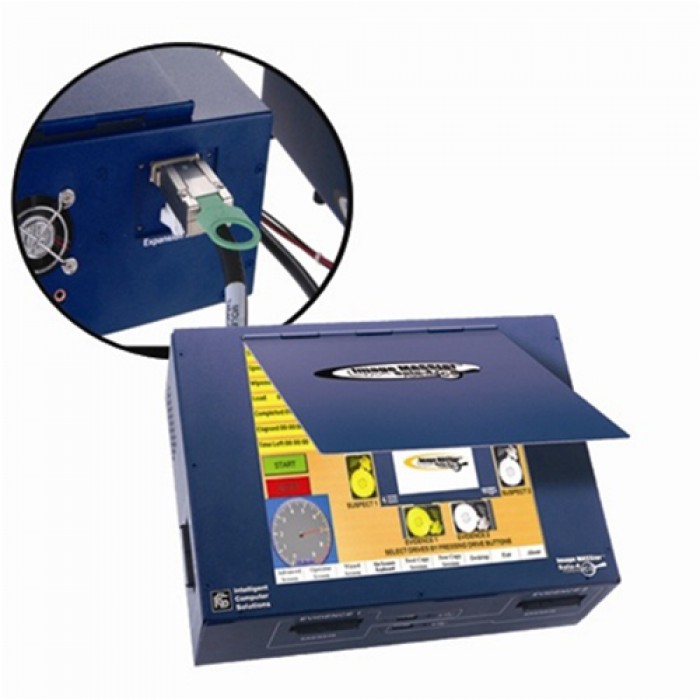

IM Solo-4 G3 PLUS IT Enterprise Hard Drive Data Acquisition Expansion Ready
The Image MASSter™ Solo-4 G3 PLUS IT Enterprise hard drive data duplication unit configured with the i7 Processor and Expansion Ready hardware, offers IT Professionals the ability to Copy Drives at SATA-3 speeds from two Source drives simultaneously. It can also Acquire Data from 1 Source drive to up to 3 Destination drives. The unit features built-in native support for SAS, SATA, eSATA, USB 3.0 and Fire-wire drives. It also supports IDE, as well as a variety of Flash Media. Designed exclusively for IT applications, the Image MASSter Solo-IV G3 system is a versatile lightweight, portable, high speed data duplication device. Source drive's data can be copied at speeds exceeding 6GB per minute.

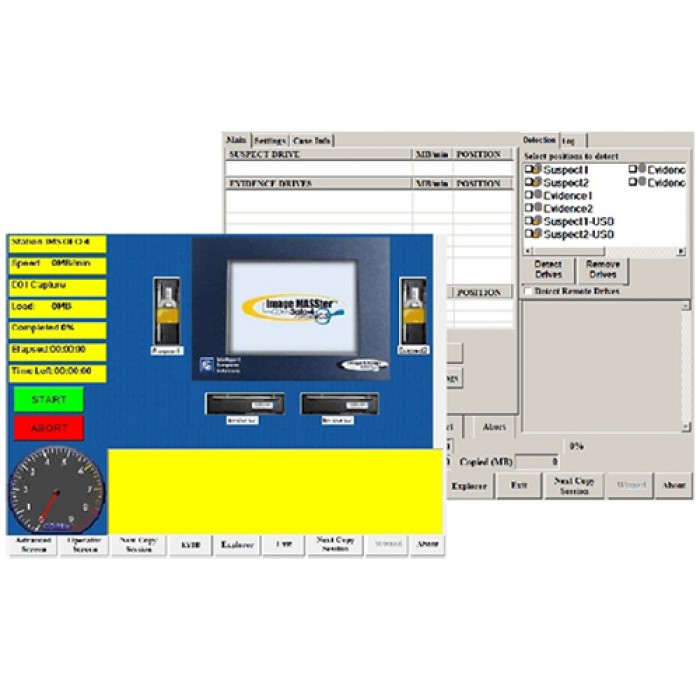

The unit offers multiple Copy Formats such as IQ-Copy which is an "Intelligent Copy" method that copies only allocated data and creates, scales and formats Destination partitions. The available Copy Formats include "VHD Capture", which allows storing multiple images in a single Destination drive or Shared Network Folder. The unit's advanced Touch Screen user interface provides ease of use. This IT Data Acquisition unit also offers a built-in Gigabit Ethernet connection allowing users to upload images to Storage Area Networks (SAN) for the purpose of processing and archiving data. The unit allows installation of 3rd Party applications.
Optimized for today's High Speed Drives, the Solo-4 IT G3 PLUS Enterprise Duplicates and Sanitizes drives at speeds exceeding 7GB/min. The unit's design takes advantage of current drive technology and also prepares the user for future advances in drive speeds.

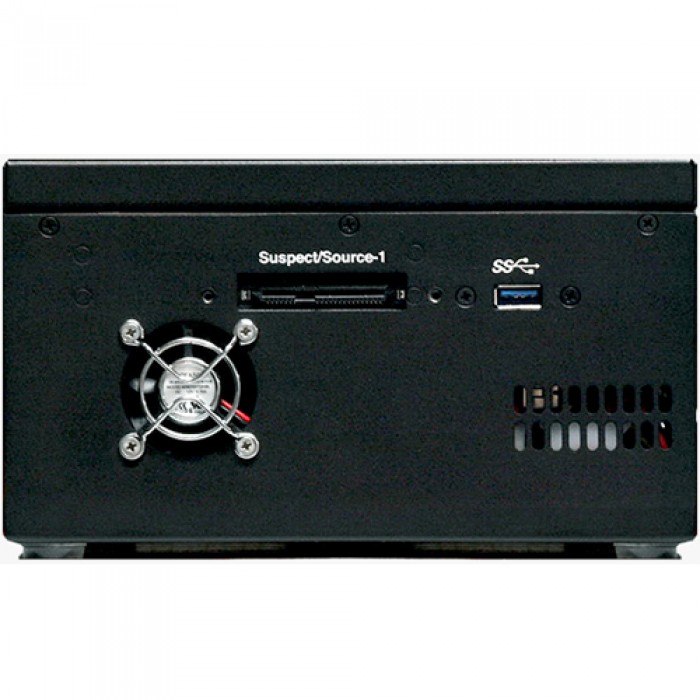

One Write Protected "Source" Port:
For the protection of the user's original images, the unit provides one standard write protected native SATA/SAS "Source" port and one standard write protected native USB 2.0 "Source" port for the duplication of up to three "Target" drives. Optional Adapters allow imaging of IDE drives, 1.8" ZIF, 2.5" Laptop drives, and Flash Media such as Compact Flash, Memory Sticks, SD, Micro SD, Multi Media card, etc.
Multiple "Target" Ports:
Provides three native SATA/SAS 'Target" ports and three native USB 2.0 "Target" ports to allow the user to make up to three copies of a single drive. One of the "Target" ports can be configured by user as an optional write protected "Source" port to allow the single copying of 2 different "Source" drives simultaneously. Optional Adapters will allow imaging to other drive devices including external RAID units.
Multiple Operational Modes:

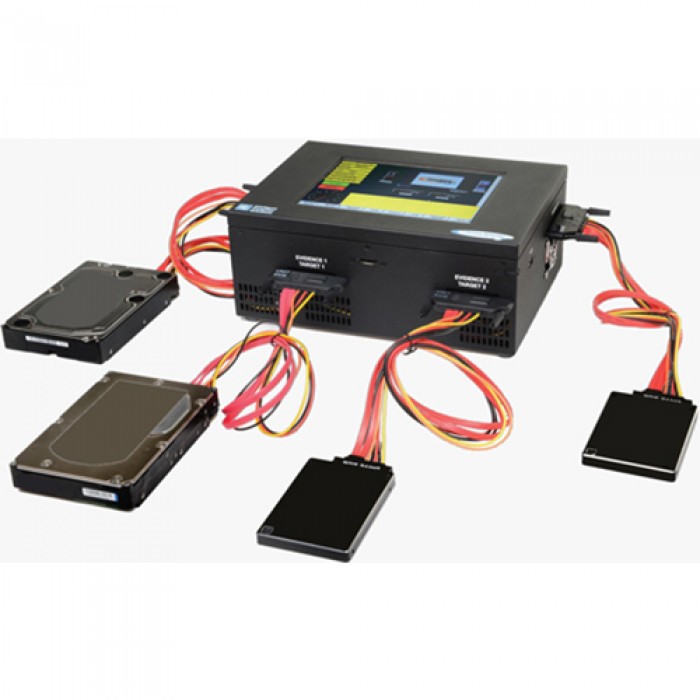

Single Source Copy Mode allows Duplicating from one "Source" drive to up to three "Target" drives.
Multi Source Copy Mode allows Duplicating from two "Source" drives to two individual "Target" drives.
Multi Operational Mode allows performing different operations simultaneously, such as duplicating some drives while sanitizing other drives; all without any speed degradation.
Multi MASSter Mode allows the duplication of up to three different "Target" hard drives from images stored on a single "Source" drive. For the user's convenience, this mode allows for multiple images to be stored on a singe "Source" drive.
Windows Operating System:
The IMSolo-4 IT G3 PLUS Enterprise runs on the Windows 10 Operating System, providing flexibility and device compatibility support. Unit can be customized for Multi-Language support. Unit can be customized to individual's needs upon request. Compatible with a wide range of PC peripherals.
Multiple Imaging Formats:
The unit provides multiple Duplication Formats:IQ-Copy which copies only allocated files, greatly reducing copy time and automatically scales and formats partitions.
"Percent of Disk copies all sectors including unused sectors and supports any Operating System.
Multi MASSter allows for the duplication of stored images of hard drives.
Supports Single Pass or Multi-Pass Wiping using the DoD Standard to permanently erase all data from hard drives.
"On the fly" Drive Image Encryption*:
Utilizing the built-in AES 256 Encryption Technology the Image MASSter Solo-4 G3 PLUS Enterprise encrypts with minimal speed degradation all digital data during the Acquisition Process for the purpose of safe guarding sensitive information. The Image MASSter Solo-4 G3 PLUS Enterprise creates a secure key with a user-chosen pass phrase.
An AES 256 encryption key is then generated by the Image MASSter Solo-4 G3 PLUS Enterprise and can be saved to any USB thumb drive. The encrypted drive can be decrypted on the fly utilizing the Image MASSter Solo-4 G3 PLUS Enterprise or any regular PC loaded with the ICS free decryption utility and the USB thumb drive containing the saved key.
User can then safely image the decrypted data to an additional target drive. The IMSolo-4 SATA-3 G3 PLUS Enterprise supports the AES 256-bit block cipher Encryption Standard, which has been approved by NIST and chosen in the US as the government standard.
The IMSolo-4 G3 PLUS Enterprise AES Encryption Algorithm is hardware based and is embedded and implemented directly through the unit's VIA Nano Processor. VIA Technologies, VIA Nano Processor has been validated as correctly implementing the AES algorithm as indicated in the attached NIST report titled,
"The Advanced Encryption Standard Algorithm Validation List." See Validation # 1229.
* This process is NOT compatible with the DiskCypher product line.
Upload and Download Images to Network Storage Area:
Images files can be uploaded and downloaded to a Network Storage Area. This will allow the user to take advantage of large storage platforms (SAN) for the purpose of processing and archiving images.
Preview Data: Preview active files on the "Source" drive utilizing Windows file viewing capabilities in a write protected environment.USB Card Reader Support: Optional 3rd Party USB Card Reader Support allows use of Flash Media such as Compact Flash, Memory Sticks, SD, Micro SD, Multi Media card, etc.
Write-Protection: By default, the "Source" port is permanently write-protected. Optionally, any "Target" port can be write-protected when used as a "Source" port in Multi Source Copy Mode to avoid any accidental overwrites to the original hard drive.
Hashing and Data Verification:
Provides Read Back Verification and Hashing using MD5 or SHA algorithms for data integrity verification.
Image MASSter™ Solo-4 SATA-3 6Gb/s Internet/Network Connection Disclaimer
(ICS) assumes no liability for the security of the customer's computer/network systems. ICS assumes no liability for the security of the Image MASSter™ Solo-4 when it is connected to either the Internet or another Network. Utilizing the Image MASSter™ Solo-4 G3 PLUS Enterprise for to upload data to a network requires the unit to be connected to the network and this may cause a risk of the system being compromised.
The user is responsible for taking the necessary steps to ensure the safety of both the Image MASSter™ Solo-4 G3 PLUS Enterprise and the network in use when the unit is utilized to upload data to a network.The security of the Image MASSter™ Solo-4 G3 PLUS Enterprise when connected to the Internet or a network relies on the user's discretion; however, ICS recommends, at a minimum, to the user to take the following steps:
The Image MASSter™ Solo-4 G3 PLUS Enterprise is set to have Internet Connection and Automatic Windows Updates disabled as default. Users will need to enable Internet Connection when uploading data to a network. It is highly recommended that the user install anti-virus and firewall Hardware Device protection prior to connecting the Image MASSter™ Solo-4 G3 PLUS Enterprise to either the Internet or a network. A lesser protection can be achieved with personal firewall software. Continuously running an updated version of anti-virus software with the Image MASSter™ Solo-4 G3 PLUS Enterprise may help prevent an intrusion into the unit or network.
ICS recommends updating the anti-virus software program every time the Image MASSter™ Solo-4 G3 PLUS Enterprise is connected to the Internet or a network.
Users should always utilize a clean (scanned for viruses) USB Thumb Drive when updating the Image MASSter™ Solo-4 G3 PLUS Enterprise unit Software or Firmware.Users should ONLY connect the Image MASSter™ Solo-4 G3 PLUS Enterprise to a network when uploading data. It is imperative for users to REMOVE the Image MASSter™ Solo-4 connection when not actively performing these tasks.
These recommendations are provided to the user as a reference; however ICS cannot assure that the Image MASSter™ Solo-4 G3 PLUS Enterprise will not become compromised when connected to the Internet or a network. User assumes all responsibility for the data and security of the Network.
